General Specification
- Model

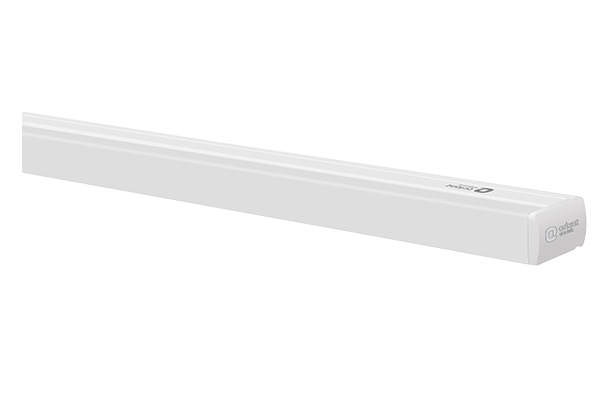

- Eternal Grace Sunlight LED Batten-24W
- Type
- LED Batten
Technical Specification
- Wattage
- 24W
- Input Voltage (V)
- 220-240V AC
- Input Current( A) ±10%
- 0.11
- Operating Voltage (V AC)
- 100~300
- Input Supply Frequency (Hz)
- 50 Hz
- Power Factor
- >0.90
- Total Harmonic Distrotion (THD)
- < 20 %
- Luminous Efficacy (Im/W)±10%
- 100 Lm/W
- Luminous Flux(Lumen)±10%
- 2400 Lm
- Ambient Temperature (TA)
- 0°C – 45°C
- Surge Protection
- >2.5KV
Optical Parameter
- Beam Angle
- > 120°
- Color Temperature
- 6500K – Coolwhite
- Color Rendering Index (CRI)
- > 80
Dimension
- Length
- 1185 ±2 Mm
- Width
- 25 ±1 Mm
- Shape
- Square
- Housing Material
- Aluminium Extruded Housing
General Data
- Rated Lamp Life
- 25000 Hrs
- Protection Class
- IP 20
- Surge Bearing Capacity
- Up To 2.50 KV
- LED Type
- LM 80 Approved
- Applications
- Can Be Used In Residences, Small Shops, Schools And Colleges
